PICKIT 44pin Demo Board

Microchip DM164120-2 PICkit 2 44-Pin Demo Board

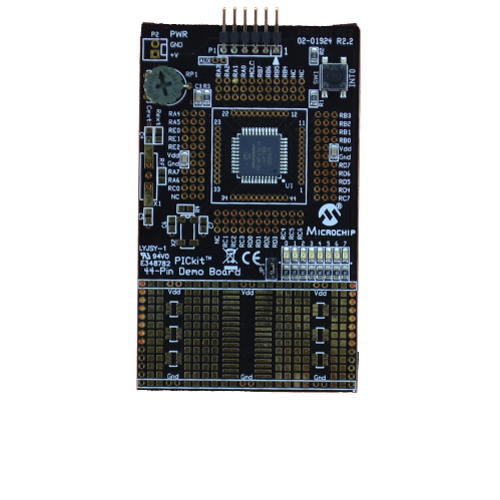

DV164035This demonstration board is fitted with a PIC18F45K20 microcontroller and is designed to demonstrate 44-pin TQFP Flash devices. A surface mount prototyping area is provided and the board includes 8x LEDs, a push button switch and a potentiometer. A 6-pin ICSP header is provided in order to be able to program devices using PICkit 2 or 3 programmers.
The preassembled board has been preprogrammed with a demonstration program that uses inputs from a push button and a potentiometer to produce a sequence of lights from the onboard LEDs.

• Supports various devices in the 44-pin TQFP Flash device family
